    Automatic Steel Round & Square Pipe Packing Machine For HG127 Tube mill

    Categories:
    Contact Now

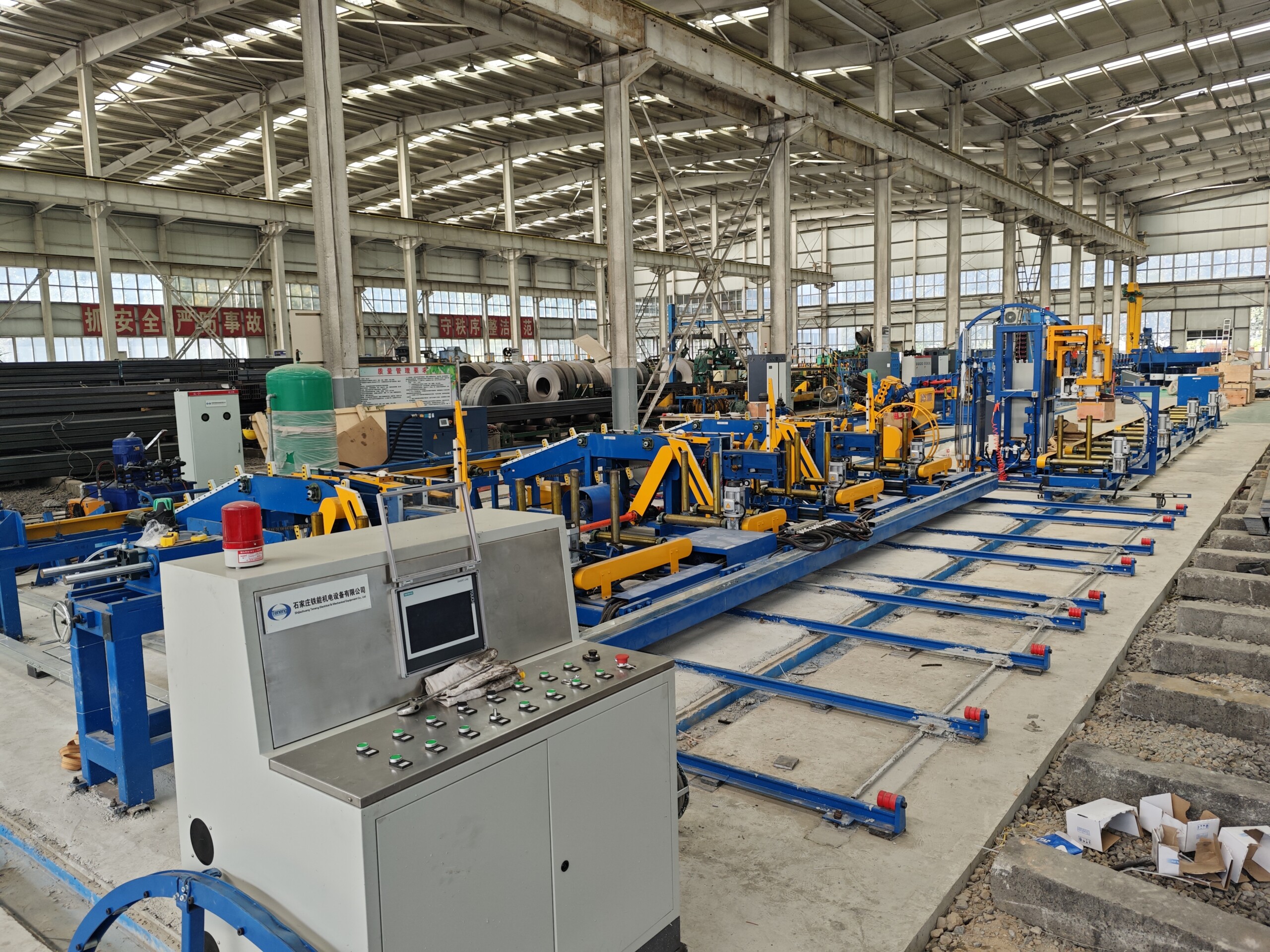

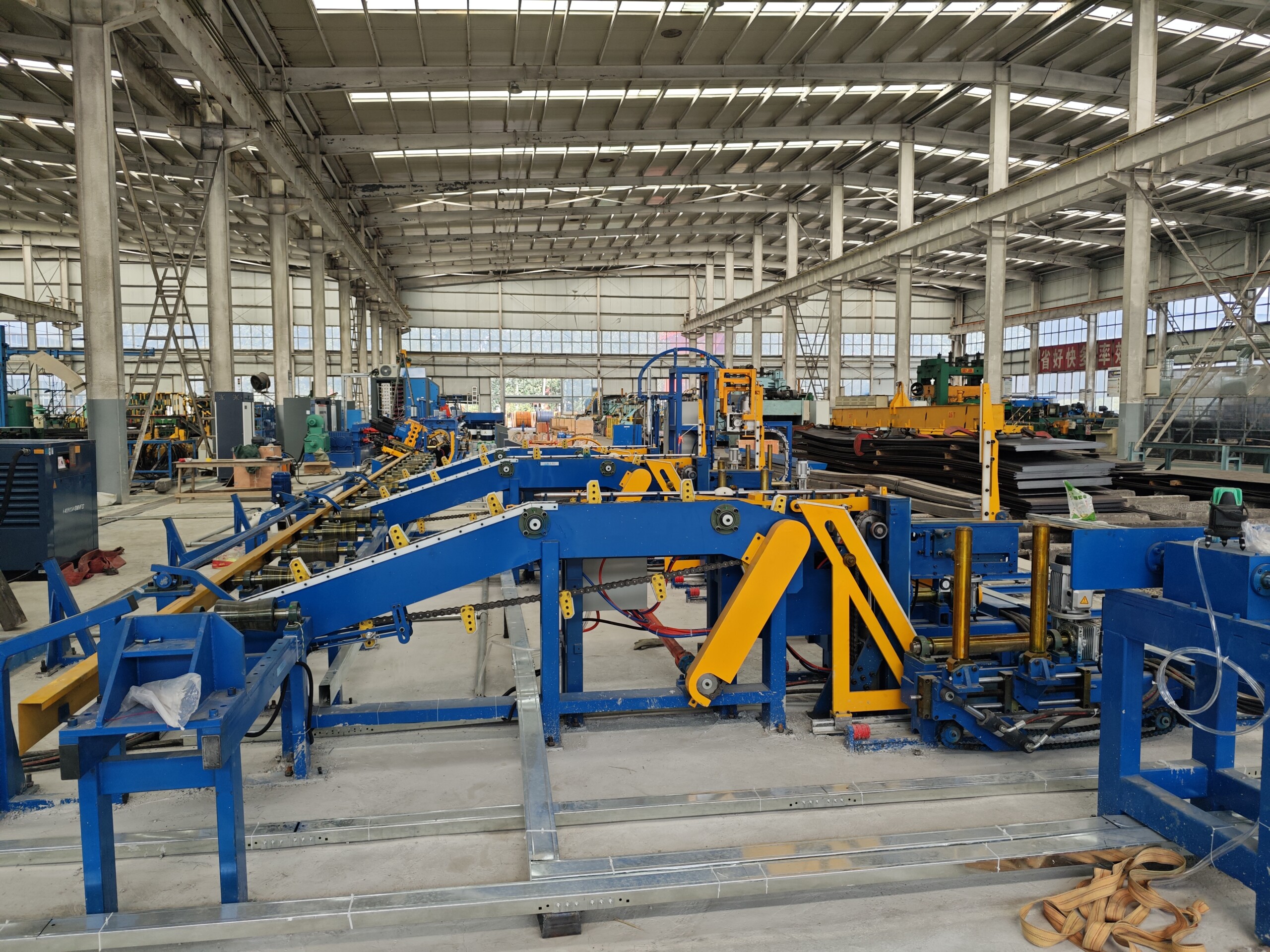

    The machine is used to stack and pack the finished product on the pipe production line. Without manual operation, the machine runs automatically, that improved the production efficiency a lot. It eliminates the knocking noise, damage, and safety hidden danger, and improves the product quality and lowers down the production cost.
    To meet the domestic need on the automation of the pipe production line, we absorb the strong point of the overseas equipment and develop it innovative. high safe reliability, compact and reasonable structure, mature process, and convenient operation maintenance. Compared with the overseas machine, the performance to price ratio of our machine is higher.

    Finished product will be of round pipe, square and rectangle pipe.

    The technical flow of the production line:

    Feeding strip→ Uncoiler→Peeler→Fiveroll Flattening→shear and end welder→ Spiral accumulator→ Forming→High-frequency induction welding→Removing Externalburr→ Polishing Roller→WaterCooling→ Sizing→CuttingSaw→ Pullout roller table→ Weighing and Measuring→ Painting andMarking→Packing→ Warehousing

    Pipe Parameter
    Round pipe Φ114mm-Φ219mm
    Square&Rectanglepipe 80X80mm-150X150mm
    Pipe length 6m
    Packing Type
    Fully automatic No seal punching type bundling machine head
    Packing belt quantity 4
    Width 32mm
    Thickness 1.0mm
    OD 800mm
    Width 200mm
    Max tension 20000N
    The junction plane width is not less than the belt width. The length is not less than 150mm.( The circular arc diameter is not less thanΦ750mm)
