HGF300high-frequency welded pipe production line isthe special equipment providinglongitudinally welded pipeand cold formed steel forindustriessuch asmetallurgy, construction, transportation, machinery, vehicles andso on.Used traditional square technology to produce square and rectangle pipe.Takingcold or hot-rolled steel as raw materials,throughcold-formed and high-frequency welding method to producethe suitable roundtube.Material of the coil: low carbon steel (σb≤500Mpa,σs≤235Mpa.)Strip Steel: Q235 (max.)
Finished product will be of round pipe, square and rectangle pipe.

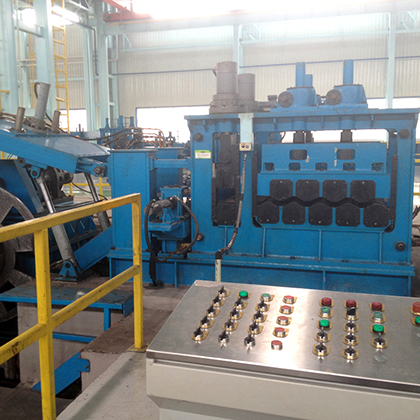

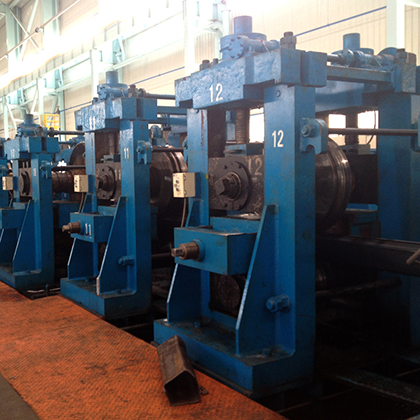

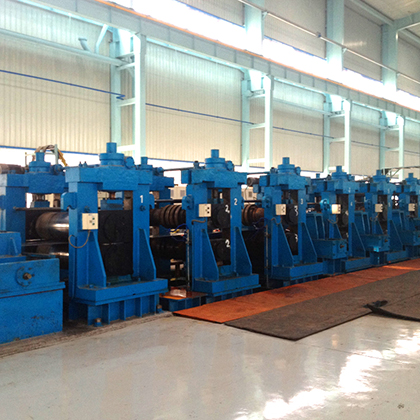

Feeding strip→ Uncoiler→Peeler→Fiveroll Flattening→shear and end welder→ Spiral accumulator→ Forming→High-frequency induction welding→Removing Externalburr→ Polishing Roller→WaterCooling→ Sizing→CuttingSaw→ Pullout roller table→ Weighing and Measuring→ Painting andMarking→Packing→ Warehousing
| Strip Steel Coil | |
| Material | Low carbon steel and low alloy steel |
| Strip steel thickness | 4.0~12.0mm |
| Strip steel width | 360~1200 mm |
| Inner Diameter | Φ580mm~Φ760mm |
| Outer Diameter | Φ900mm~Φ2200mm |
| Max Weight | Max.25 ton |
| Steel Pipe Specification | |
| Square Pipe | 90×90~300×300mm |
| Thickness | 4.0~12.0mm |
| Rectangle Pipe | 120×80~200×400mm |
| Thickness | 4.0~12.0mm |
| Length Scope of Pipe | 6~12m |
| Tolerance | ±3 mm |
| Moulding mothed | Squareand rectangle |
| Welding mothed | H.F. welding |
| Feeding direction | Right or left side feeding |
| Stand operation level | +950mm |
| Power | |
| Voltage | AC380V±10% |
| Phase | 3 phase |
| Frequency | 50Hz±1.0% |
| Control Power | |
| Voltage | AC220V±10% |
| Phase | Single phase |
| Frequency | 50Hz±1.0% |
| Power capacity installed | Appro. 3600KW |
| Pressure | 0.4Mpa |
| Rate of flow | 4m3/h |
| Poductioncapacity | 100000ton/year |
| Line speed | 10-40m/min |
