HG127 Carbon steel pipe making machine
This mill is intended to manufacture round pipe,square pipe, rectangle pipe, structure pipe as customer advise.
The production pipe is straight welding pipe,welding by High frequence Solid state Welder (for example Thermatool welder).Material is steel strip,steel coil.
Pipe Production Range from φ8~ φ630, Thickness from 0.3mm~19mm.Pipe standard: AIP,ASTM,BS,GB.
The mill is not standard products, can design and produce as customer requirement.
Finished product will be of round pipe, square and rectangle pipe.
The technical flow of the production line:

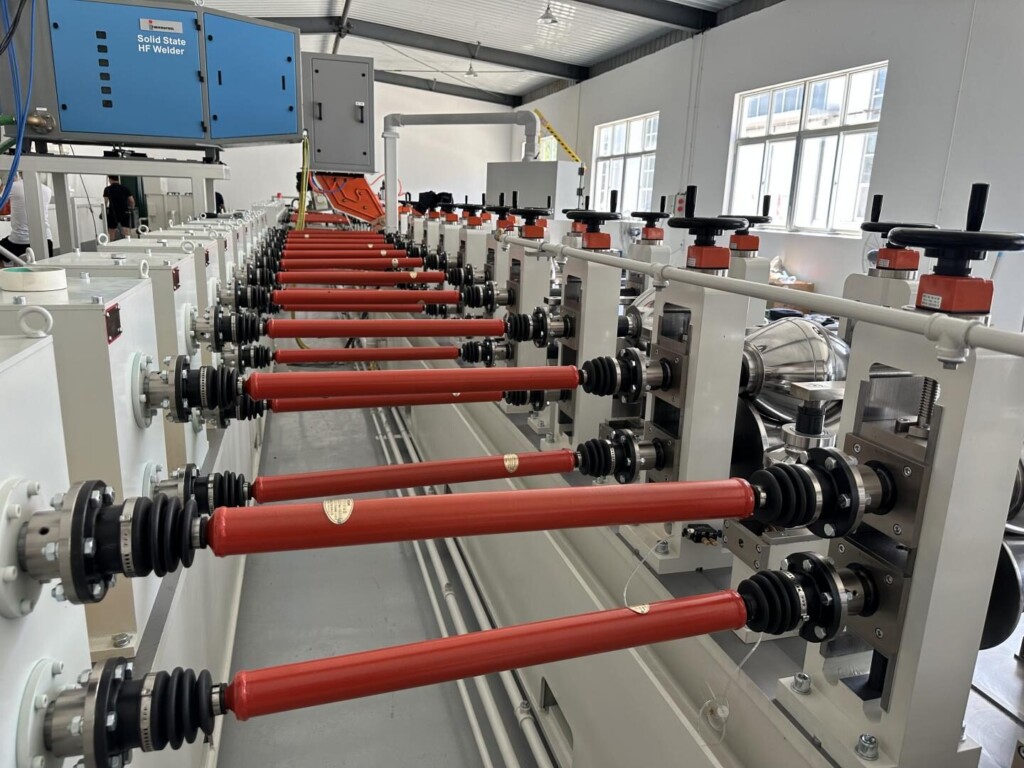

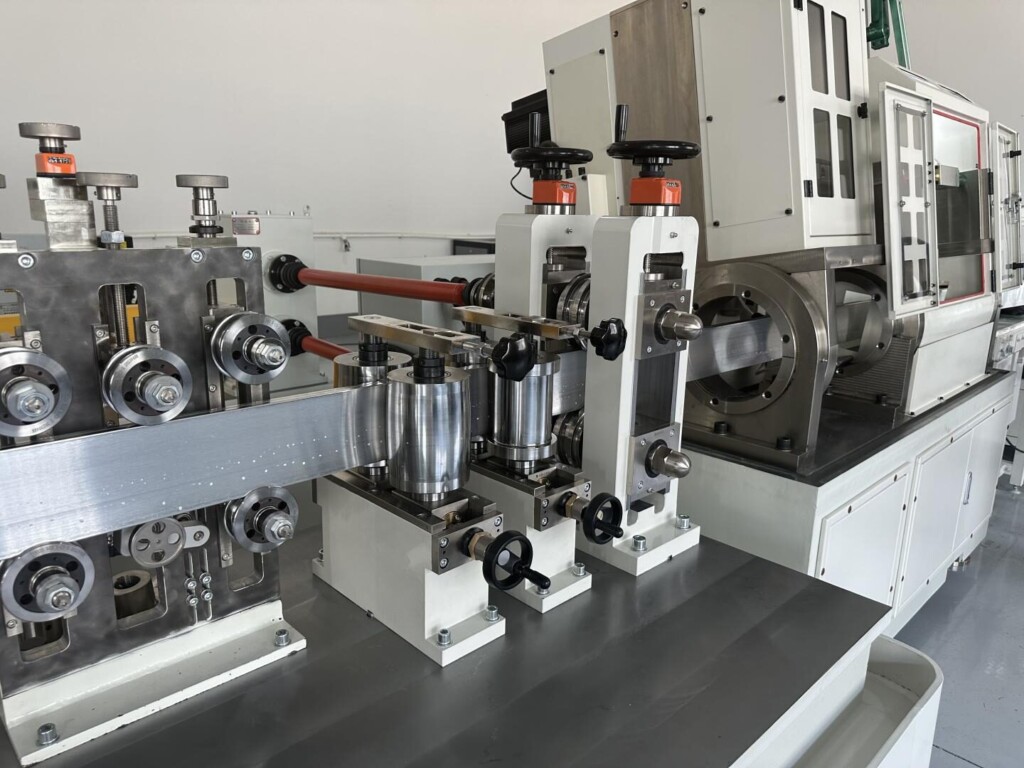

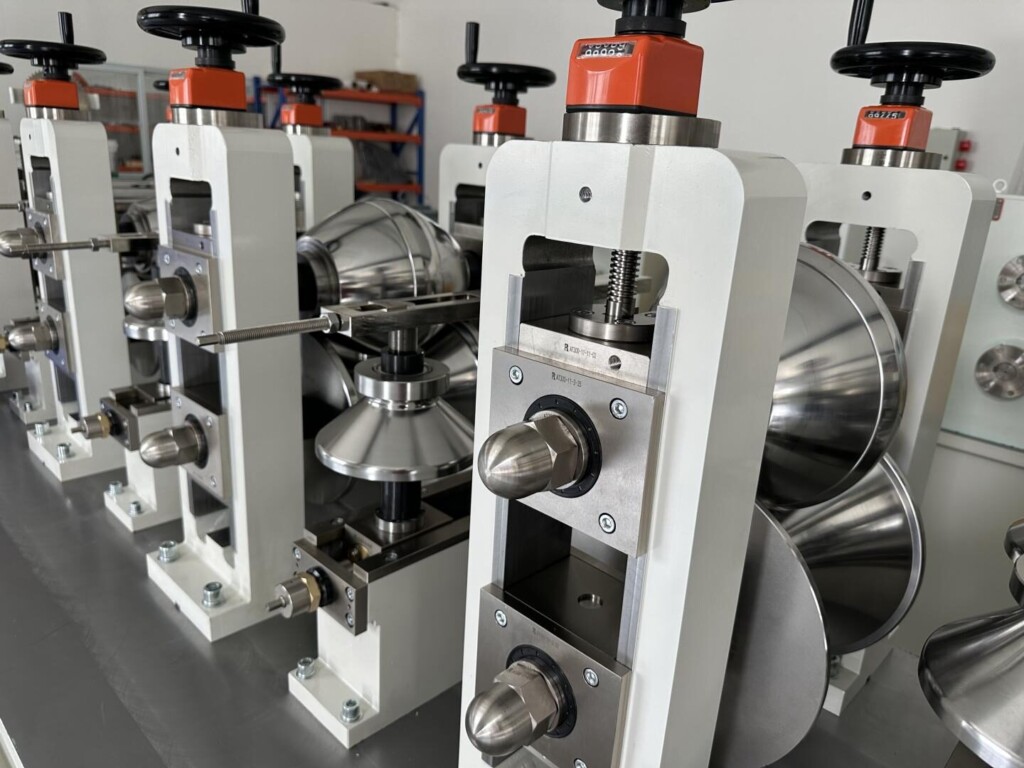

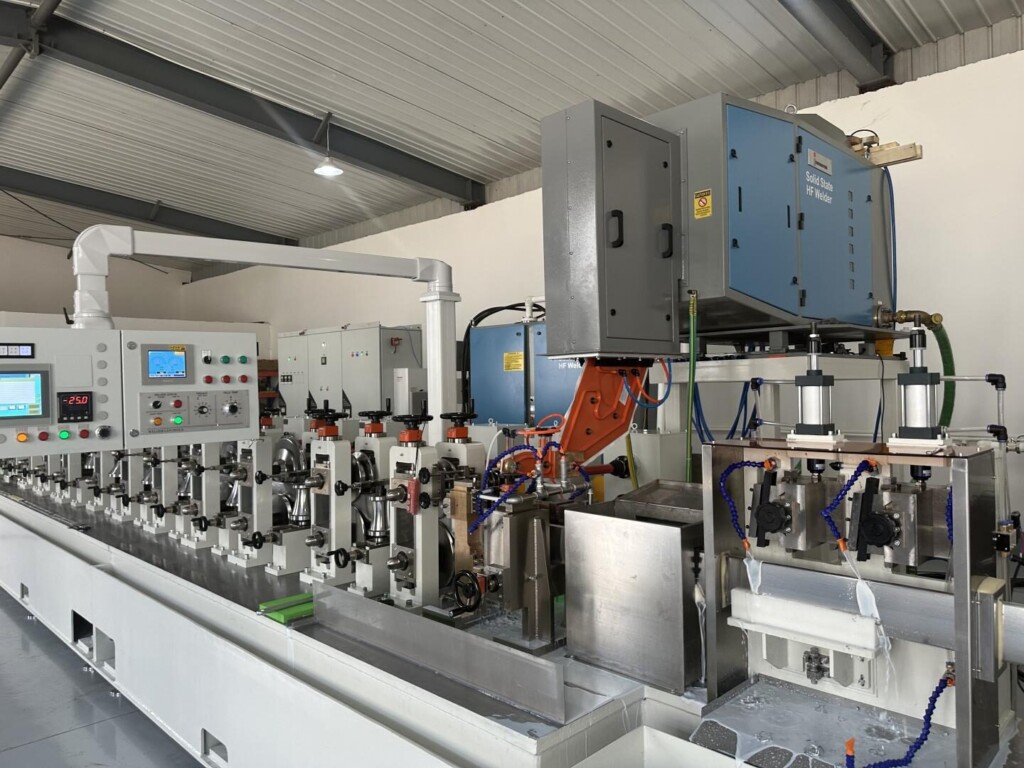

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
Steel Pipe Specification | |
Round Pipe diameter | Φ45–Φ127mm |
Pipe Thickness | 1.5 – 3.0mm |
Square and rectangle pipe | 35X35 – 100X100mm |
Pipe Thickness | 1.5 – 2.0mm |
Pipe Length | 6-12m |
Length Tolerance | 0-6mm |
Steel Tape Specification | |
Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
Inner diameter | Φ470-Φ510mm |
Outer diameter | Φmax=1800mm |
Strip steel width | 140mm-4000mm |
Strip steel thickness | 1.2mm-4.0mm |
The maximum weight | 4.0 tons |
Electric installed capacity | appro.500KW |
Line Speed | 1.5m3/h |
