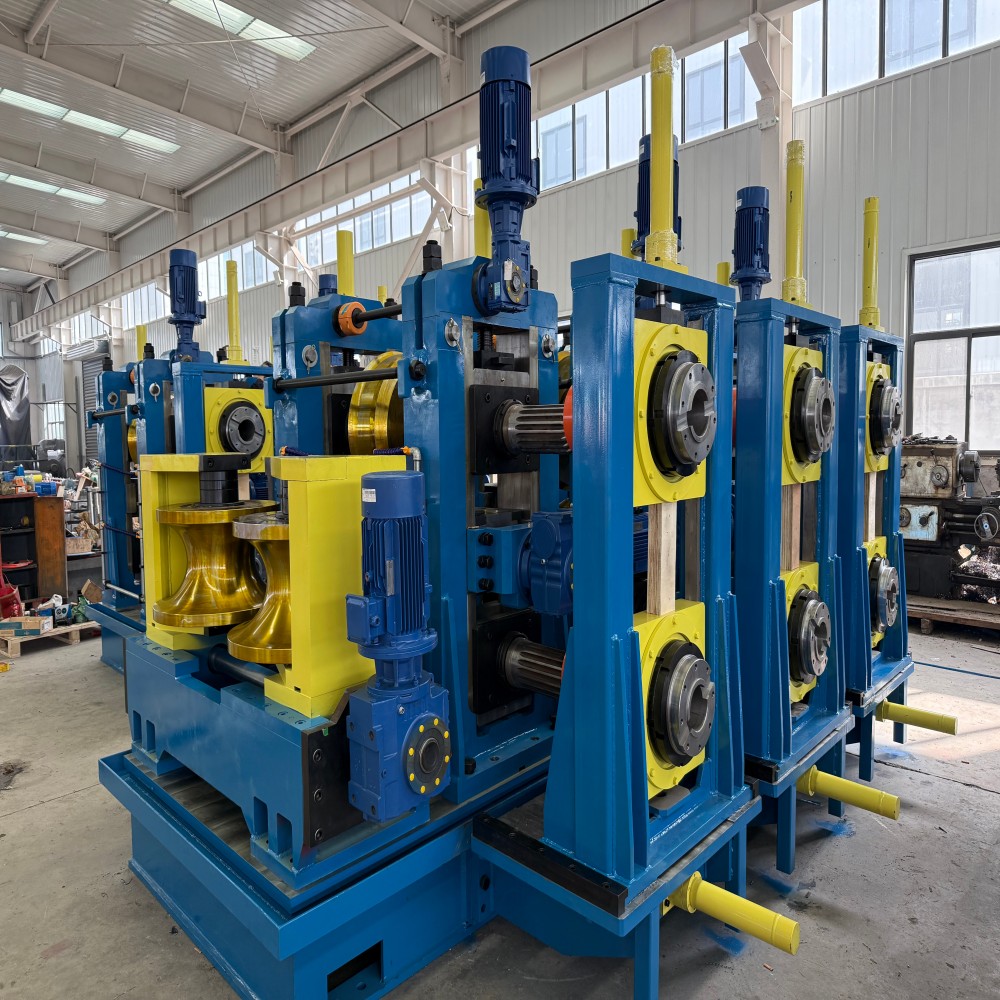

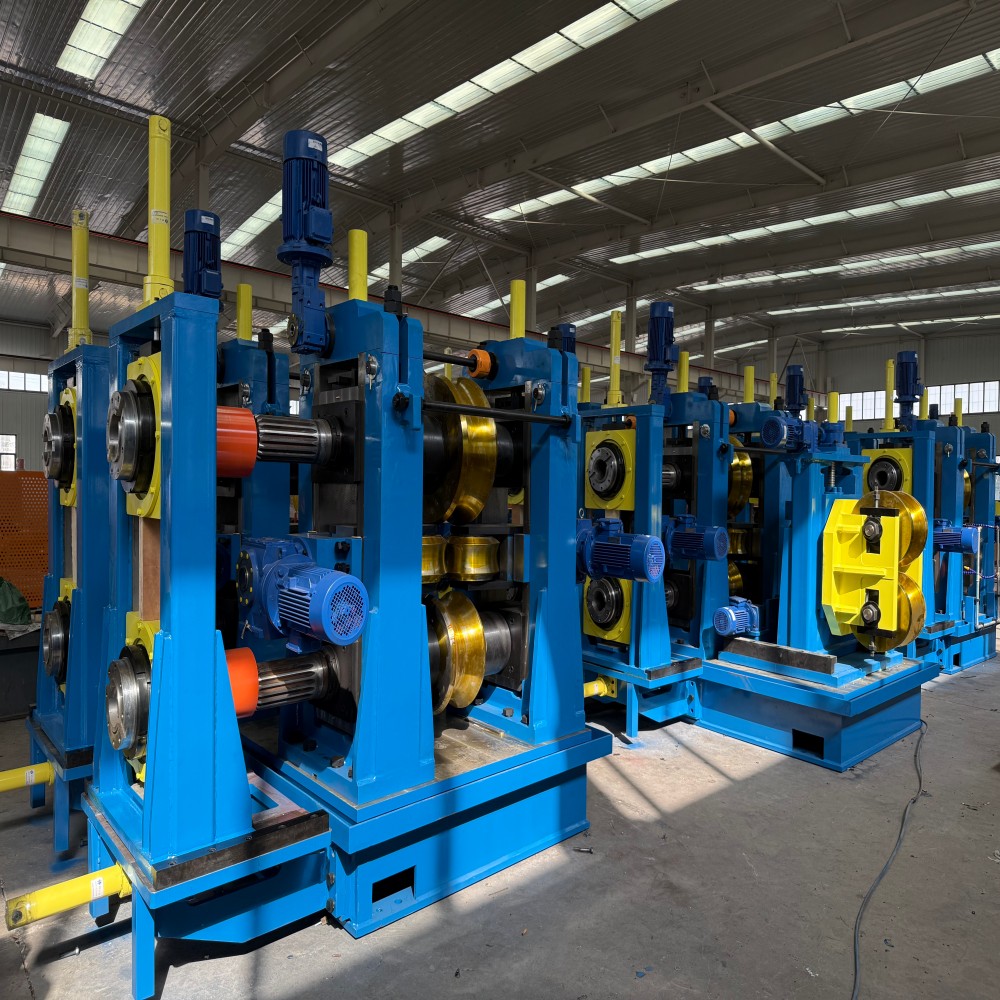

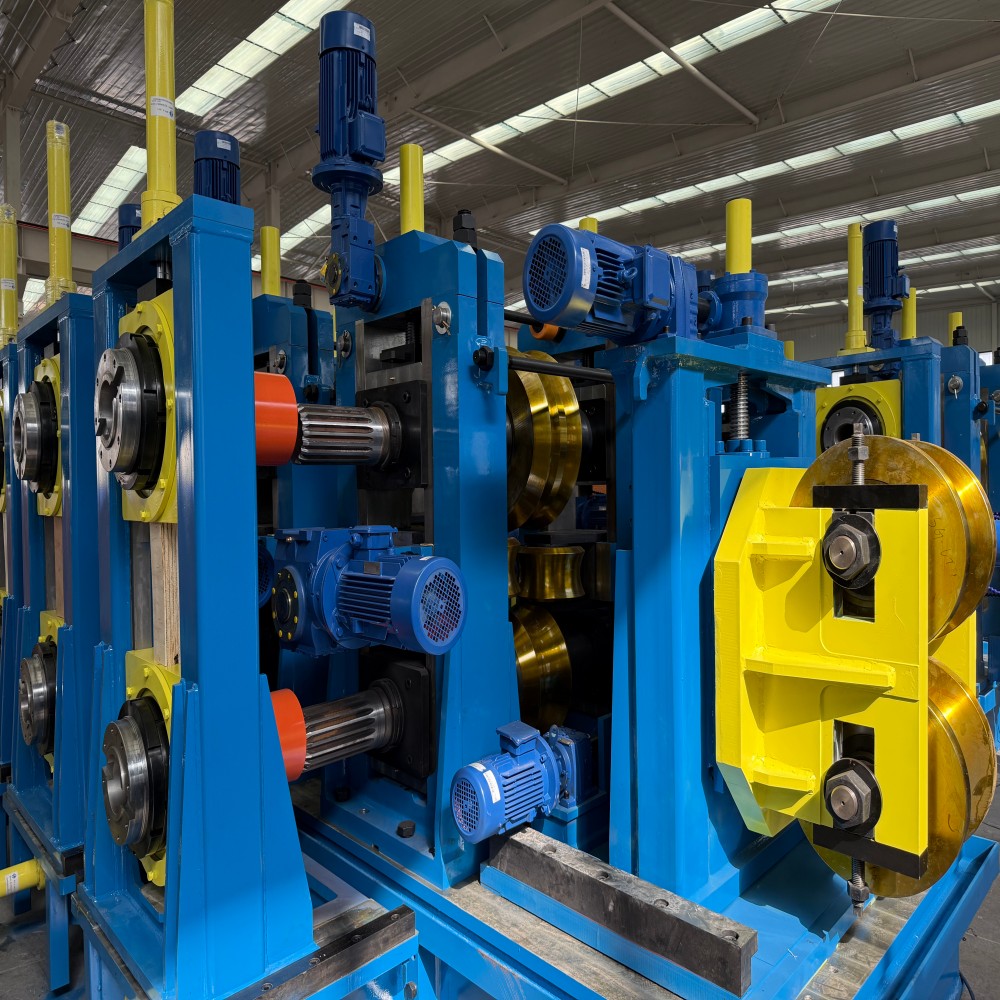

Full automatic germany ERW tube mill machine HG273 tube mill machine
The mill is intended for manufacturing round pipe of Φ89mm-Φ273mm with thickness of 4.0mm–12.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round pipe, square and rectangle pipe.
The technical flow of the production line:
{Steel Tape}→→ Double-head un-coiler→→Five-roll Flattener →→Strip-head Cutter and welder→→Horizontal spiral accumulater →→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→seam annealer→→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table
| Steel Pipe Specification | |
| Round Pipe diameter | Φ89mm-Φ273mm |
| Pipe Thickness | 4.0– 12.0mm |
| Square and rectangle pipe | 70×70-200X200mm |
| Pipe Thickness | 4.0 – 12.0mm |
| Pipe Length | 6.0m – 12.0m |
| Length Tolerance | 0-6mm |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ600-800mm |
| Outer diameter | Φmax=1800mm |
| Strip steel width | 280mm-860mm |
| Strip steel thickness | 4.0mm-12.0mm |
| The maximum weight | 15.0 tons |
| Electric installed capacity | appro. 1800KW |
| Size of the whole line | appro. 130X16m |
| Line Speed | 10-40m/min |
