Profile

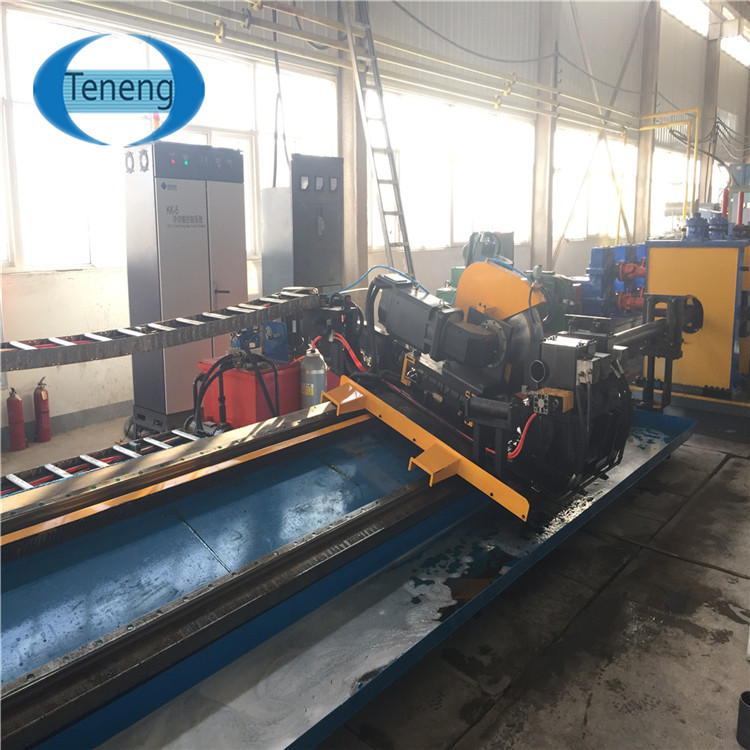

Cold saw is a new online cutting technology in H.F. welded tube industry. Compare with the friction heat saw, its most major characteristic is the cold milling principle. The end of the tube is smooth and without burr after cutting off. For high quality requirements, these is no need off-line second treatment. In addition, due to the use of servo tracking technology, cutting length accuracy is higher than the traditional computer flying saw. Dust and noise pollution are obviously reduced in the production process.
Equipment Specification
General
2.1.1 Scope of application: hot-rolled and cold-rolled steel (Max.Q235);
2.1.2 Pipe specification:
Round pipe: Ø20mm to Ø76мм;
Pipe Thickness: 1.0-4.0mm
Square pipe: 15x15mm up to 60x60mm;
Rectangular pipe: 15х25mm to 40х80mm;
Pipe Thickness: 1.0-3.0mm
Cutting accuracy (range length): +/ – 1.5 mm;
Inside bead NOT removing.
2.1.3 Mill line: Direction from left or right ; Max.
2.1.4 Cutting length: 6.0mm
2.1.5 Length precision: ±1.5mm (line speed fluctuating less than 2%)
2.1.6 Cutting speed: Max. 90m/min.
Electric Description
2.2.1 Driving motor: servo motor 15KW, SIEMENS.
2.2.2 Feeding motor: servo motor 4.4KW, SIEMENS.
2.2.3 Blade motor: AC motor 22KW(SIEMENS) with variable frequency feed mode.
