The mill is intended for manufacturing round pipe of Φ60mm-Φ165mm with thickness of 2.0mm–6.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round, square or rectangular pipe.

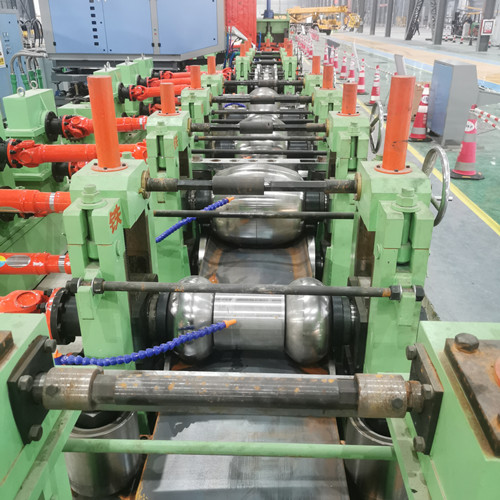

{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Cold saw under computer-control →→ Run-out table→→ Semi-auto Packing machine
| Steel Pipe Specification | |
| Round Pipe diameter | Φ60 –Φ165mm |
| Pipe Thickness | 2.0 – 6.0mm |
| Square and rectangle pipe | 50X50mm –130X130mm |
| Pipe Thickness | 2.0 – 5.0mm |
| Pipe Length | 6-12m |
| Length Tolerance | 0-6mm |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ600-Φ760mm |
| Outer diameter | Φmax=1800mm |
| Strip steel width | 200mm-520mm |
| Strip steel thickness | 2.0mm-6.0mm |
| The maximum weight | 6.0 tons |
| Electric installed capacity | appro.800KW |
| Line Speed | 20-60m/min |
