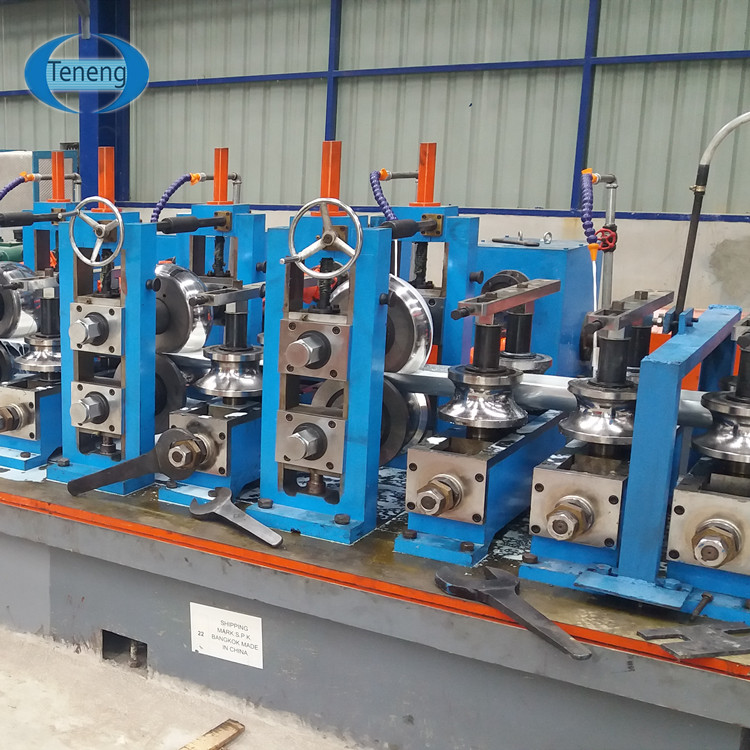

HGF300 high-frequency welded pipe production line is the special equipment providing longitudinally welded pipe and cold formed steel for industries such as metallurgy, construction, transportation, machinery, vehicles and so on. Used traditional square technology to produce square and rectangle pipe.Taking cold or hot-rolled steel as raw materials, through cold-formed and high-frequency welding method to produce the suitable round tube. Material of the coil: low carbon steel (σb≤500Mpa,σs≤235Mpa.)Strip Steel: Q235 (max.)
Finished product will be of round pipe, square and rectangle pipe.

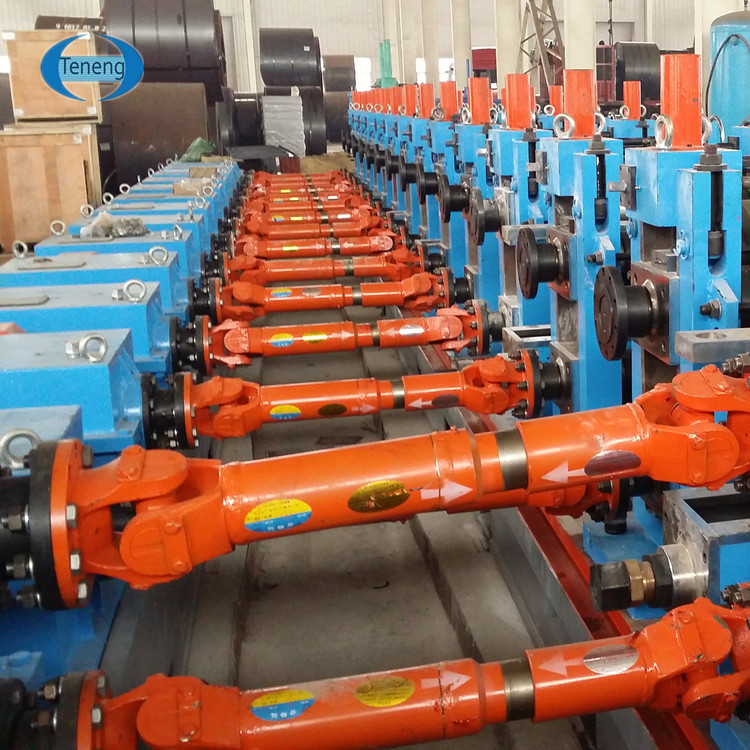

Feeding strip→ Uncoiler→ Peeler→ Five roll Flattening→ shear and end welder→ Spiral accumulator→ Forming → High-frequency induction welding→Removing External burr→ Polishing Roller→ Water Cooling→ Sizing→ Cutting Saw→ Pullout roller table→ Weighing and Measuring→ Painting and Marking→ Packing→ Warehousing
| Strip Steel Coil | |
| Material | Low carbon steel and low alloy steel |
| Strip steel thickness | 4.0~12.0mm |
| Strip steel width | 360~1200 mm |
| Inner Diameter | Φ580mm~Φ760mm |
| Outer Diameter | Φ900mm~Φ2200mm |
| Max Weight | Max.25 ton |
| Steel Pipe Specification | |
| Square Pipe | 90×90~300×300 mm |
| Thickness | 4.0~12.0 mm |
| Rectangle Pipe | 120×80~200×400 mm |
| Thickness | 4.0~12.0 mm |
| Length Scope of Pipe | 6~12m |
| Tolerance | ±3 mm |
| Moulding mothed | Square and rectangle |
| Welding mothed | H.F. welding |
| Feeding direction | Right or left side feeding |
| Stand operation level | +950mm |
| Power | |
| Voltage | AC380V±10% |
| Phase | 3 phase |
| Frequency | 50Hz±1.0% |
| Control power | |
| Voltage | AC220V±10% |
| Phase | Single phase |
| Frequency | 50Hz±1.0% |
| Power capacity installed | Appro. 3600KW |
| Pressure | 0.4Mpa |
| Rate of flow | 4m3/h |
| Poduction capacity | 100000ton/year |
| Line speed | 10-40m/min |
