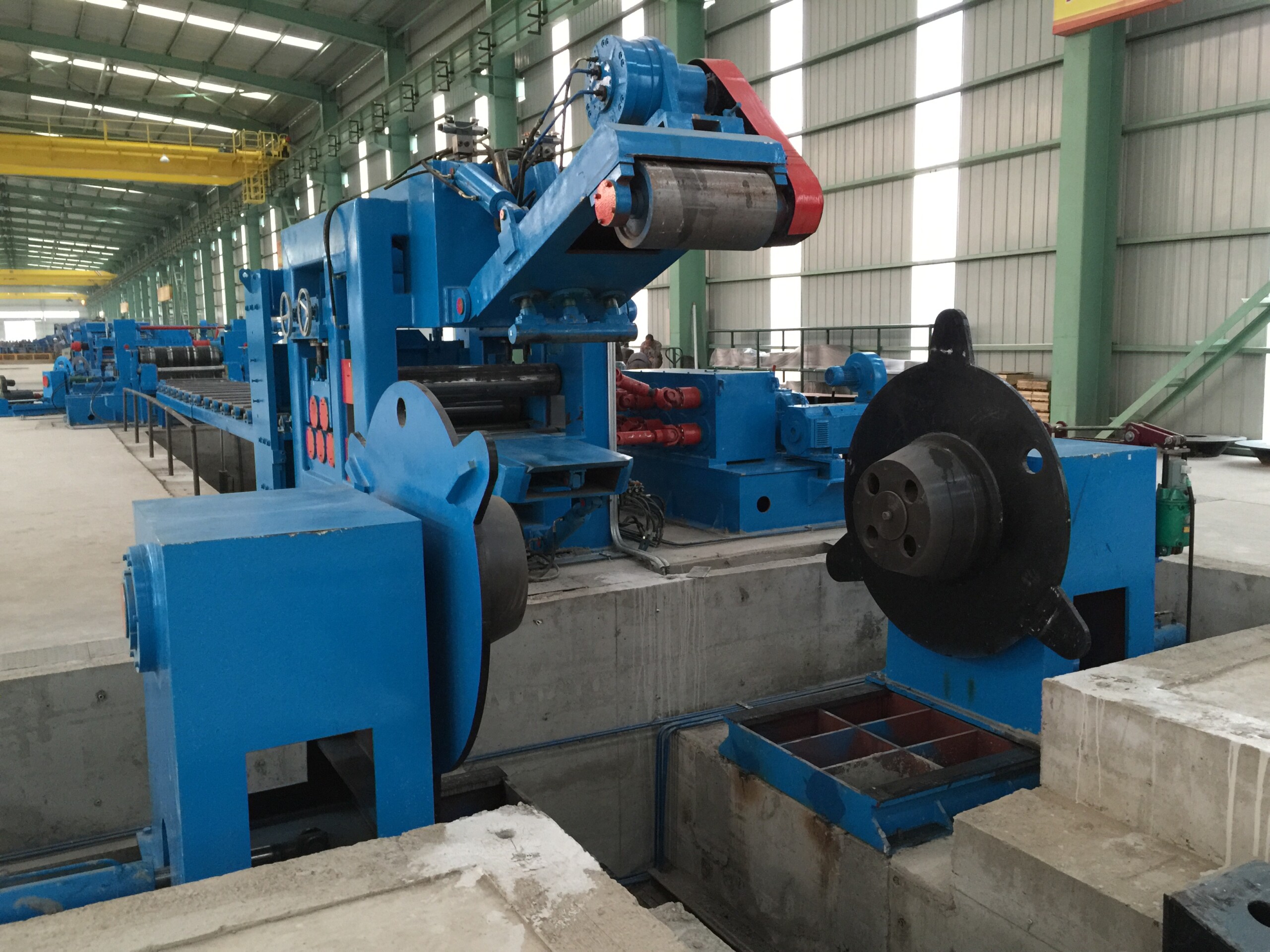

Function:
Support coil to open it, in the beginning, actively uncoiling, in normal running, passively uncoiling, also have rewinding function.
Structure:
This is composed of body, expansion drum, and cylinder and rotate joints, motor and driven device, pneumatic disc brake, open coil device, etc.
Body: Case structure, steel and section steel welding structure, install on foundation directly.
Drum: Composed of 4pcs arc plate and rectangular pyramid cover, with the function of rotate expansion cylinder and pole to affect arc plate expansion.
Expansion drum is adopt 4pcs arc plate, round Diameter: Ø508mm.
Open Coil Pressing Roll
Used for pressing coil after open the bale strip, prevent coil getting lose, and can depend its power to make few lose coil become tight
Swing of uncoiling roller driven by oil cylinder, rotation driven by hydraulic motor.
In normal running, uncoiling roller lift.
Hydraulic support: help to support uncoiler main shaft. Through hydraulic cylinder and toggle rod device, support arm raise to support shaft ends, improve shaft loading capacity, support ends is waist drum roll (surface chromium) structure.
