1. Summary

This production line is our company developed guardrail plate and shaped steel special equipment, with a certain specification of steel strip as raw materials, through the cold forming method, the production of the required specifications of cold formed steel. The unit has innovative design, convenient operation and maintenance, that is, saving investment and economical and practical, typical material galvanized steel, low carbon steel (IS2062-GR-E350). Our company shall be responsible for the overall design, manufacturing, guidance, installation and commissioning of the production line.

1. The technical flow of the production line

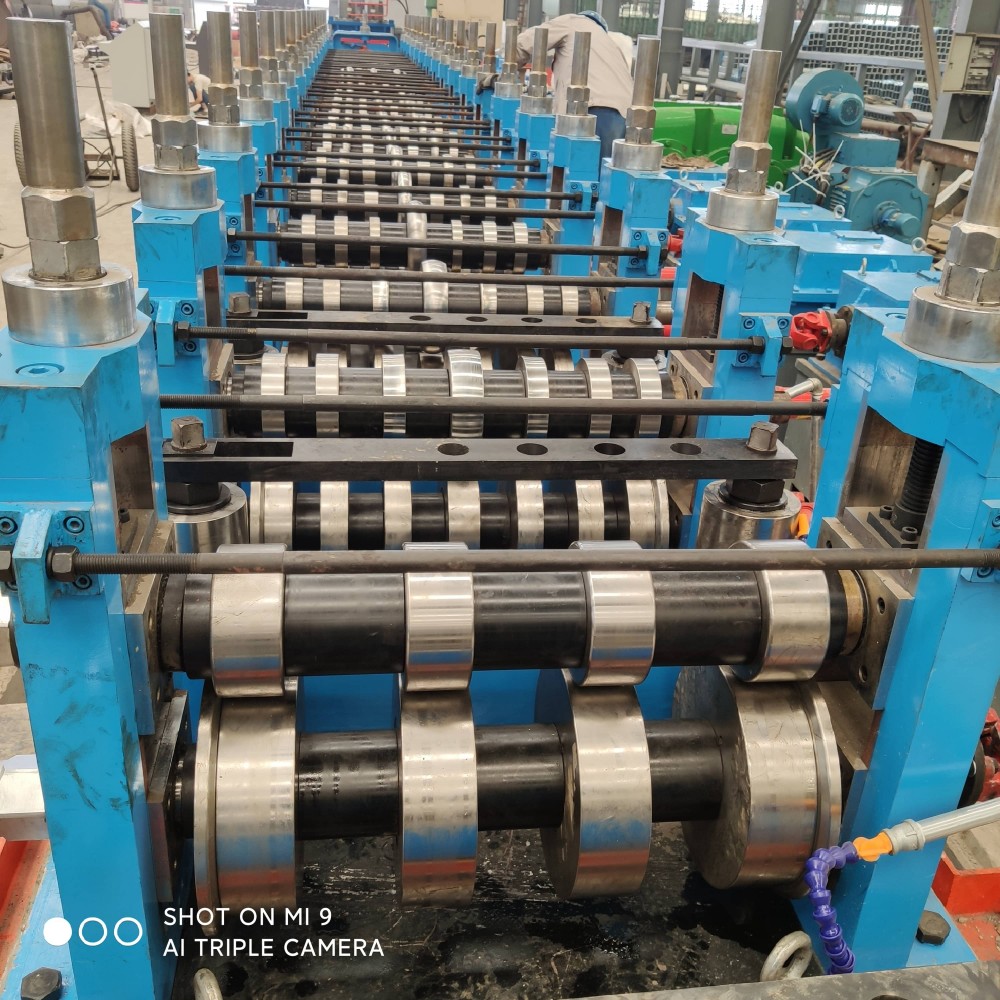

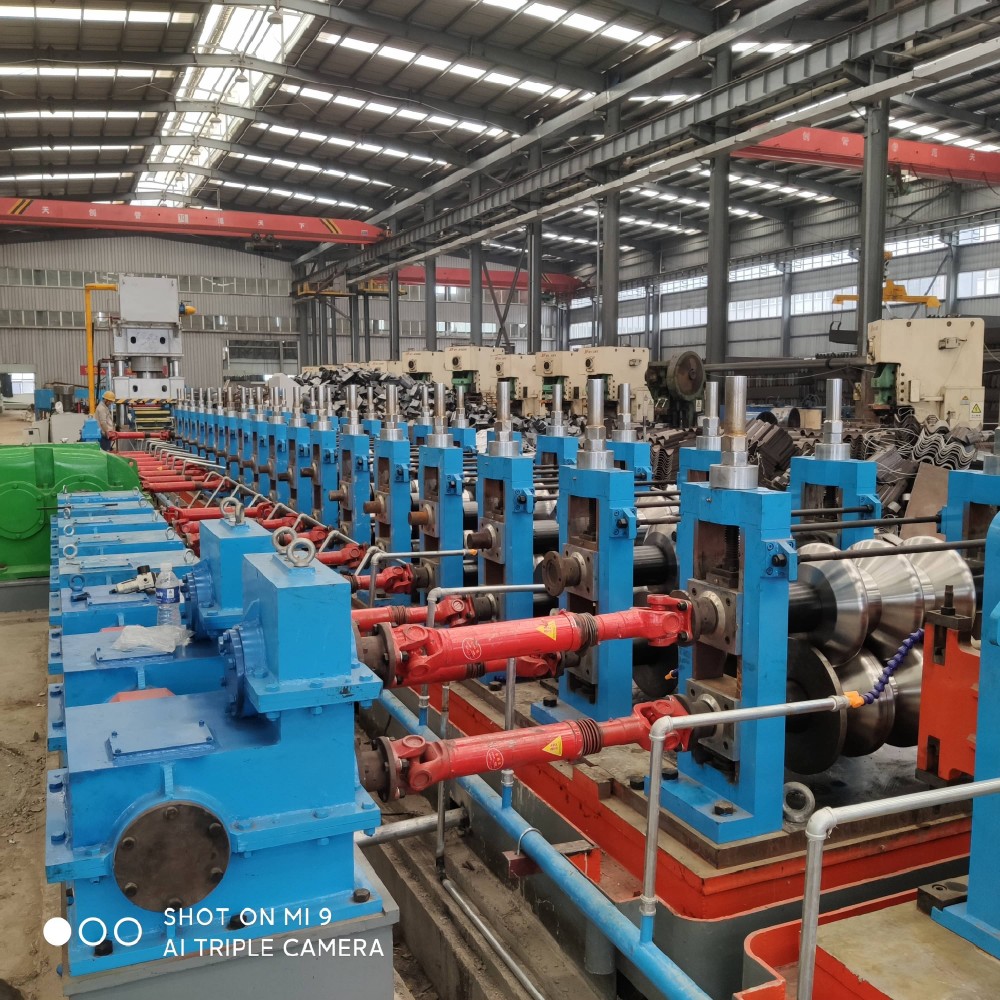

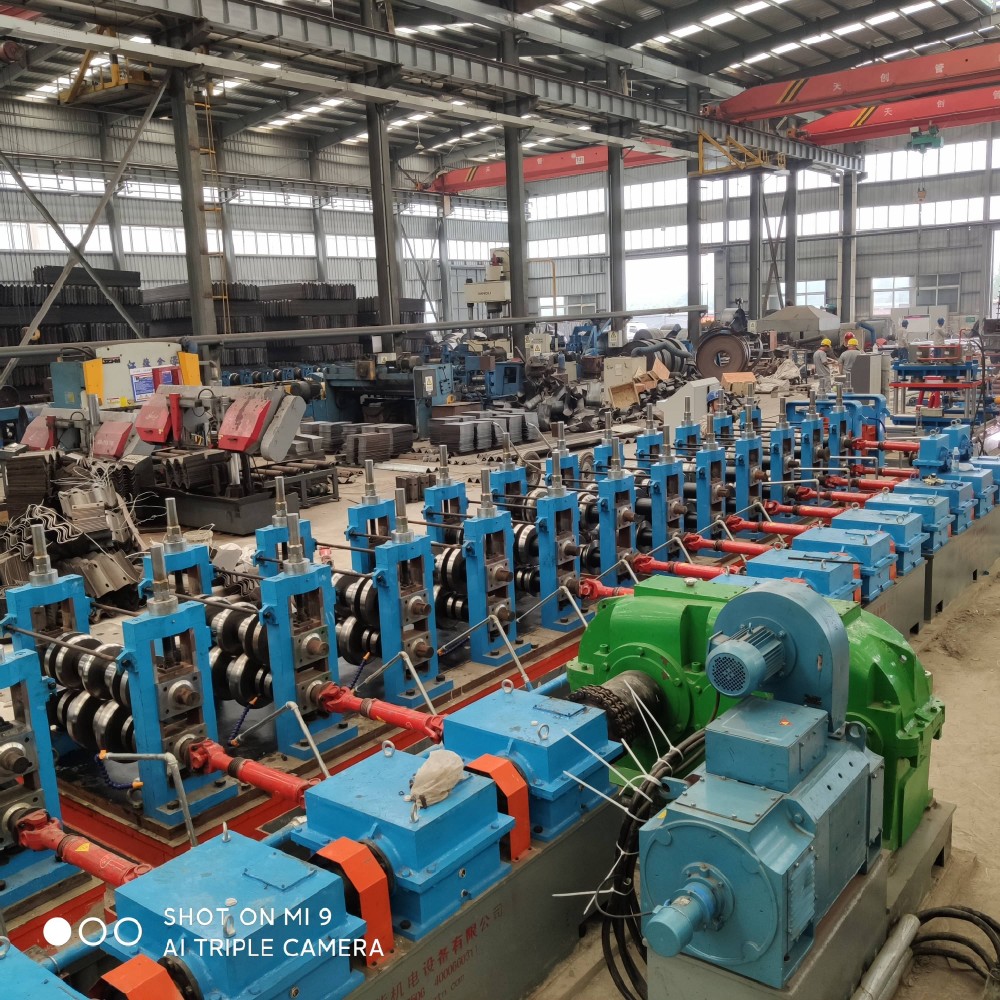

{SteelTape}→→ Single-arbor un-coiler →→Pinching & Leveling→→shear & butt welder→→spiral accumulator→→Punching→→Loop →→Cold Roll Forming mill→→Cutter→→runout table→→auto packing

III. Basic conditions:

1. a) Product profile

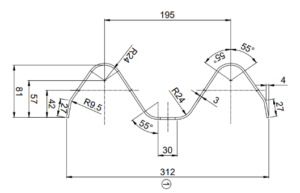

2. 2-wave W-beam

Thickness: 1.2mm-3.0mm;

2. 3-wave W-beam

Thickness: 1.5mm-3.6mm;
