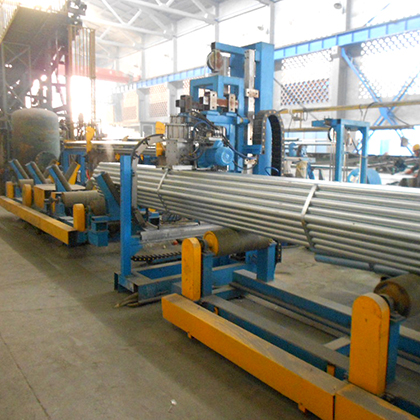

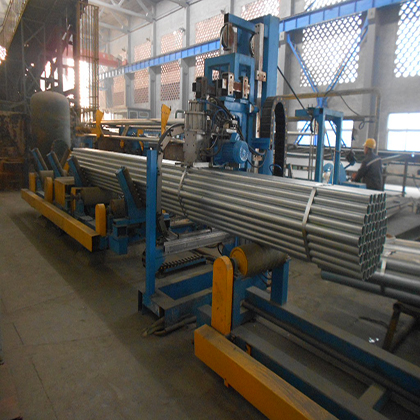

    TNDB45 Automatic Pipe Stacking & packing Machine (Round pipe)

    Contact Now



    Round Pipe Packing Machine

    The machine is used to stack and pack the finished product on the pipe production line. Without manual operation, the machine runs automatically, that improved the production efficiency a lot. It eliminates the knocking noise, damage, and safety hidden danger, and improves the product quality and lowers down the production cost.
    To meet the domestic need on the automation of the pipe production line, we absorb the strong point of the overseas equipment and develop it innovative. The machine has the characteristics of advanced technology, high safe reliability, compact and reasonable structure, mature process, and convenient operation maintenance. Compared with the overseas machine, the performance to price ratio of our machine is higher.

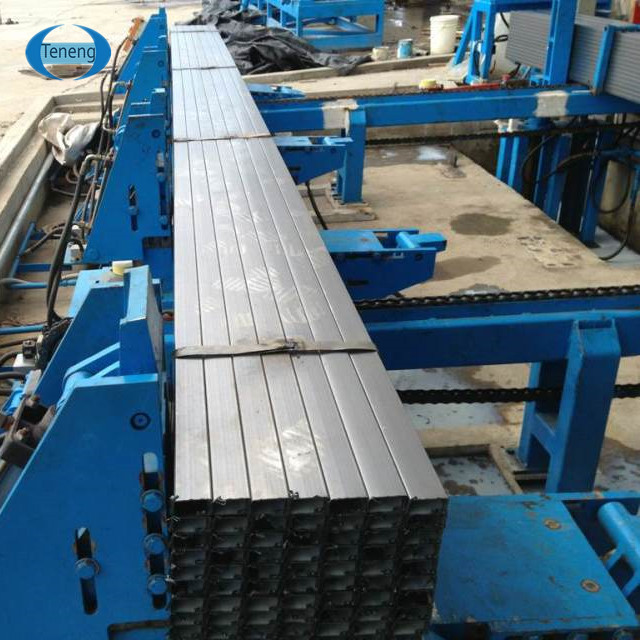

    Finished product will be of round pipe, square and rectangle pipe.

    The technical flow of the production line:

    Unloading rack → suction tray stacking → transverse movement → automatic binding → manual lifting

    The automatic stacking (packing) machine is to uniformly feed the steel pipe, use the vacuum suction cup and the motor sensing system to control the number of stacking and the package shape, and then tie the package shape with PP belt for lifting.

    (1) The production speed is fast and can be produced 24 hours without interruption.

    (2) High degree of automation, improve production efficiency, and save labor and labor intensity, improve product quality, reduce noise.

    (3) Due to the stability and reliability of the automatic stacking (packing)production line, the beauty rate and qualification rate of various pipes are improved.

    Sr. PARTS Q’ty Note
    1 Layering mechanism 2sets
    2 Lifting and moving electromagnetic sucker 2sets
    3 Transverse carriage roller table 2sets
    4 PP strips packing machine 2sets
    5 Electrical control system 1set
