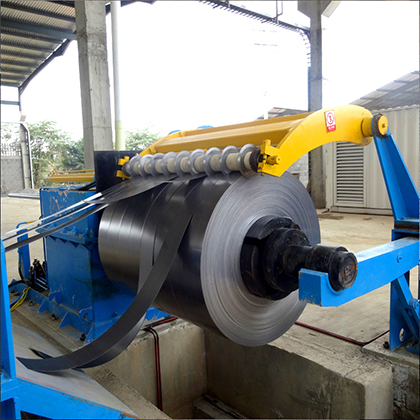

Steel slitting machine can not only be used for the steel serivice slitting industry, but also for the tube & pipe making. Many customers produce the pipes after slitting the large coil strips to the small size.
The technical flow of the Slitting line:
Storage rack→ Coil car → Uncoiler→ Centering device→ Disc shear→ Locating expanding set→ Recoiler→ separate pressure lever→ coil car
| Steel Pipe Specification | |
| Thickness of steel strip | 0.7-4.0mm |
| Width of steel strip | 150-1200mm |
| Inner diameter of strip coil | 20X20mm –60X60mm |
| Pipe Thickness | Φ508mm |
| Outer diameter of strip coil | Φ1000-1800mm |
| Max quantity of strip coil | 15T |
| Steel Tape Specification | |
| Material | Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Inner diameter | Φ610mm |
| Outer diameter | Φmax=1800mm |
| Cuts | 6-20cuts |
| The maximum weight | 3.0 tons |
| Input Power | 380Volt, 3 phase, 4 lines, 50Hz |
| Line Speed | Max 80m/min |
