Overflow

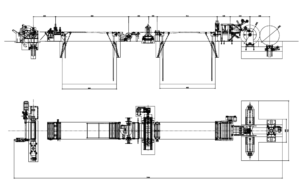

Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Loop→Side guide device→ Slitter→Scrap winder→Loop→Tension stand →Recoielr→Exit coil car

Technical parameter

1. Coil material: Carbon steel (tension grade 350-550MPa, like Q195, Q235), galvanized plate, colored steel plate etc.
2. Coil thickness: δ=0.3-3.0mm;
3. Coil width: 500-1300mm
4. Slitting precision: width tolerance: ±0.08mm;
5. Slitting speed: 0-80m/min;
6. Uncoiler: loading capacity 20T
7. Coil I.D.: ≥Φ508mm(Φ508,Φ610,Φ760)
8. Coil O.D.: ≤Φ1500mm
9. Slitting blade shaft diameter: Φ205mm; material 40Cr
10. Slitting strips: ≤2.0mm, Max.15pcs; ≤3.0mm, Max.12pcs;
11. Strip width: ≥30mm
12. Slitting blade: Φ205XΦ350X10; accompany with 28pcs of blade
13. Slitting blade material: H13K
14. slitting blade hardness: HRC58°-60°
15. Recoiling I.D.: Φ508mm
16. Power supply: 380V, three-phase 50Hz
17. The main components, quick wear parts of electric control system apply to the GB stipulation.
18. Working surface elevation: 1000mm
