Overflow

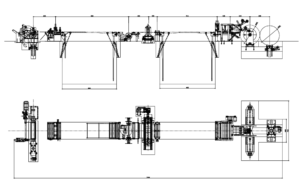

Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Loop→Side guide device→ Slitter→Scrap winder→Loop→Tension stand →Recoielr→Exit coil car
|
Steel coil parameters |
Control mode | PLC DC control |
| Материал
|
Low Carbon steel(Max.Q235) | |
| Tensile strength | δb≤450Mpa,δS≤260Mpa | |
| Steel thickness
|
1-6mm | |
| Steel width | 500-1500mm | |
| Steel coil I.D | Φ508/610/760mm | |
| Steel coil O.D | ≤Φ2000mm | |
| Steel coil weight | ≤25T | |
|
Slitter parameters |
knife pivot diameter | Ф260 mm |
| Knife pivot material | 40Cr | |
| Blades specification | Φ260mmXφ400mmX15mm | |
| Blade material | H13K | |
| Slit parameter | Slit quantity | 5 pcs (6mm) 8 pcs (4mm) 10 pcs (3mm) 15 pcs (2mm) 30 pcs (1mm) |
| Min strips width | More than 30mm | |
| Width precision | ≤±0.1mm | |
| Recoiler parameter | Steel coil I.D | Φ610 мм |
| Steel coil weight | ≤25T
|
|
|
Other parameters |
Сила | 380V/50Hz/3Ph |
| Скорость линии | 0-50m/min(3-6mm) 0-90m/min(1-3mm)
|
|
| Capacity | About 340Kw | |
| Whole line Dimension | Around 30m(L)X9m(W) | |
| Operator needed | 1 engineer,2 common workers |
